DIY Guide: Transforming Your Asus X541 Laptop Webcam into a USB Webcam (Scroll Down for Details)

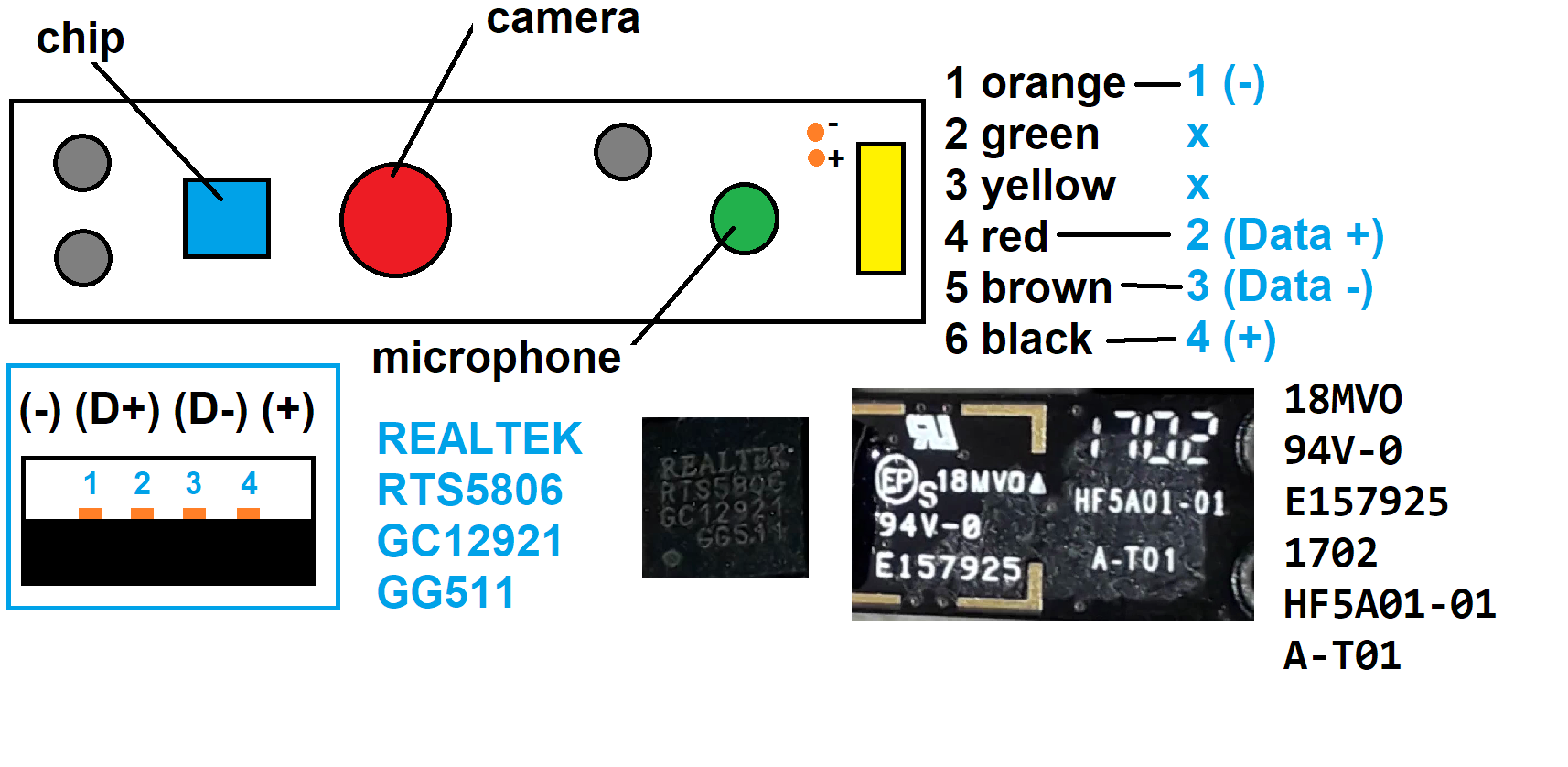

A diagram showing a USB cable color-coded pinout with labels for chip, camera, and microphone components. The text lists wire colors and their corresponding pin assignments, with 'x' marks for incorrect mappings. It includes component part numbers like REALTEK RTS5806 and GC12921, and a photo of a circuit board with printed identifiers. The overlay text explains the USB pinout mapping for a device, with some pins marked as incorrect (x).
